Process controllers, FD5000 digital panel meter

Fuji Electric offers a complete line of digital panel meters for the display of all your application process data. Numerous functions or options (current, voltage, thermocouple, frequency, RTD or pulses - 10000 points display- Alarms, re-transmission output, modbus communication…) are available and allow panel meters to meet your needs. Totalizer and integrator models with dual display complete the range.

Fuji Electric FD3000 4 digits panel meter overview.

The FD3000 panel meter displays a lot of kind of industrial data's. It allows easy programming with universal power supply and accepts a wide variety of input signals: Pt100 (3 wires), Pt1000 (2 wires) (IEC 60751) and thermocouples (IEC 60584-1), process, potentiometer (3 wires) and resistance (2 wires). Scales are easily configurable for any unit. Manual mode (theoretical values ​​of the transducer) or learning mode (real values) help to configurate and all parameters are configurable in front display. Available with 20mm display.


- Digital panel meter with a display of 10000 points
- Format : 48mm x 96mm x 60mm
- Power supply : 115 to 230V AC, 12V DC or 24V DC
- 4 input types available
- Process : ±10V, ±20mA and potentiometer (with transmitter power supply)
- PT100
- Thermocouple J, K, T
- Frenquency / Tachymeter (magnetic sensor, NaMUR, encoder, PNP, NPN, contact, H.T.)
- Easy and quick configuration in front display
- Available options : 2 alarm relay outputs SPDT 8A (High and Low alarms)

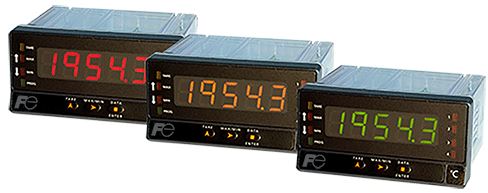

Fuji Electric FD6000 multifunction & multicolor 5 digits panel meter.

The FD6000 is a programmable indicator incorporating the most modern technologies. It accepts a wide variety of input signals. Easy and fast configuration on the front panel or by PC software (free) 10-segment linearization and front or remote tare.

PROGRAMMABLE DISPLAY COLOR (GREEN, ORANGE, RED) to indicate the measurement statut (GOOD, MEDIUM, BAD), to differentiate the measurement type according to the color.  Colors are programmable and can be assigned to the measurement, the programming or ro to alarm activation. Its scale can be configured either by the 3-key keypad or by direct acquisition of the signal level.

- Digital panel meter with a display of 20000 points,
- Color display programmable (green, orange or red) assignable to measure, programming or alarm activation.
- Format : 48mm x 96mm x 60mm,
- Power supply : 115 to 230V AC, or 21-53V AC and 10-70V DC,
- 3 input types available:
Universal inputs : ±10V, ±20mA, ±15mV, ±30mV, ±150mV, Pt100, Thermocouple J, K, T, and potentiometer
Counter, Tachymeter, Chronometer & Frequency meter, (magnetic sensor, NaMUR, encoder, PNP, NPN, contact, H.T.)
Voltmeter / Ampere meter (TRMS) AC/DC (voltage 2, 20, 200, 600V AC / DC and 50, 60, 100mV AC / DC, current 200mA, 1/5A)
- 3 inputs with 12 logic functions programmable
- 2 brightness levels display
- Total or partial configuration lockout

Options :
- External transmitter power supply (24 V DC 60 mA or 10 V/5 V DC 60 mA)
- 2 alarm relay outputs 8A (High and Low alarms)
- 4 alarm relay outputs 5A (High and Low alarms)
- 1 DC voltage (0-10V) or current (4-20mA) output
- RS 232C or RS 485 (MODBUS RTU protocol) communication

Fuji Electric FD9000 Integrator & Totalizer panel meter with dual display.

The FD9000 is the perfect interface for monitoring and measuring your process with direct display of units : fully programmable and easy to use. It offers a wide range of functions : linearisation from 1 to 29 segments, filtering of the signal measurement from 0 to 9 levels, direct access to threshold presets and 36 preprogrammed functions controlled by 4 logic inputs. Easy and fast configuration on front panel,front tare or remote tare. It has a sensor power supply and allows a scaling of the signal by learning. The logarithm function is integrated from version 2.2.

- Integrator & Totalizer panel meter with dual display 100000 points
- Format : 48mm x 96mm x 120mm
- Power supply : 115 to 230V CA, or 24-48V CA
- 2 input types available :
- Universal input ±1, 10V, ±1, 20mA, ±15, 30, 60, 300mV, Pt100, Thermocouple J, K, T, R, S & B, Potentiometer
- Frequency meter, Tachymeter, Counter, Totalizer (Magnetic .120mVca, NaMUR, encoder, PNP, NPN, contact, voltage 600Vca)

Options :
- External transmitter power supply (24 V DC 30 mA or 10 V/5 V DC120 mA)
- 2 alarm relay outputs 8A (High and Low alarms)
- 4 alarm relay outputs 5A (High and Low alarms)
- 1 DC voltage (0-10Vdc) and current (4-20mA) output
- RS 232C or RS 485 (MODBUS RTU protocol) communication

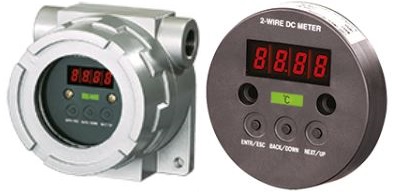

Fuji France 4-Digit Loop Powered Indicator - FXE, FXEI, FXE-B & FXEI-B

- 4-digit LED display
- No external power source needed
- Scaling, linearization and other configurations selectable via three front control buttons

SAFETY APPROVAL.
- CENELEC intrinsic safety (ATEX)
- CENELEC flameproof (ATEX)
