PETER ELECTRONIC BRAKING DEVICES VERSIBRAKE SAFE 72 ... 360A SERIES
The DC brake with equipment protection VersiBrake Safe offers maximum control and safety for a gentle shutdown. The VersiBrake Safe braking device ensures that motors with efficiency classes IE1 to IE3 are gently, wear-resistant and safely braked. In particular, the relevant specifications or European DIN standards (such as DIN EN 12750: 2013) in compliance with the requirements of category 2, PL c from EN13849-1: 2008 and SIL1 according to DIN EN 61508 for the safety of woodworking machines are met.
- DC braking with one-way rectification
- Integrated braking contactor
- Integrated standstill detection
- Monitoring of stopping time
- Suitable for all asynchronous motors
- Suitable for IE1, IE2 and IE3 motors
- Self-optimizing braking
- CANopen on board
- Degree of protection IP20
- Plugable push-in control terminals
- Meets trad assoc. requirements for PL =c, acc. to EN13849-1:2008
PETER ELECTRONIC, BRAKING DEVICES VERSIBRAKE SAFE 72 ... 360A SERIES
| Model | Rated current, A |
Rated motor rating, kW |
Rated motor voltage |
Control supply voltage |
Switching cycle per hour |
Restart time |
Contact rating | Braking time |
Weight / kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| VB S 480/600-72 | 72A | 7,5kW |
200 / 480V; 400 / 600V |
24VDC |
50 |
200ms | 2A / 250VAC / 30VDC | self-optimizing |
1,35kg |
616 € |
| VB S 480/600-132 | 132A | 15kW |
200 / 480V; 400 / 600V |
24VDC |
30 | 200ms | 2A / 250VAC / 30VDC | self-optimizing |
1,45kg |
664 € |
| VB S 480/600-222 | 222A | 25kW |
200 / 480V; 400 / 600V |
24VDC |
17 |
200ms | 2A / 250VAC / 30VDC | self-optimizing |
1,45kg |
876 € |
| VB S 480/600-360 | 360A | 45kW |
200 / 480V; 400 / 600V |
24VDC |
18 | 200ms | 2A / 250VAC / 30VDC | self-optimizing |
3,6kg |
1146 € |
Technical Information and Features
PETER ELECTRONIC BRAKING DEVICES VERSIBRAKE SAFE 72 ... 360A SERIES
- Parameterization via keypad or CAN-Bus
- Potential-free control inputs and outputs
- Motor temperature monitoring (PTC, KTY, PT1000)
- Device protection
- Tool speed monitoring (external speed sensor required)
- Device fault relay (safety relevant)
- Summary fault relay
- Star-delta starting control
PETER ELECTRONIC VERSIBRAKE SAFE SERIES typical Applications
- Centrifuges- Vibration sifters
- Wood working machines
- Grinding machines
- Mixer, et cetera
The safety functions include, for example, the prevention of unintentional startup due to interference, the controlled controlled shutdown, the control of the (protective) door lock or the external standstill monitoring with intelligent standstill detection.
Dimensions:

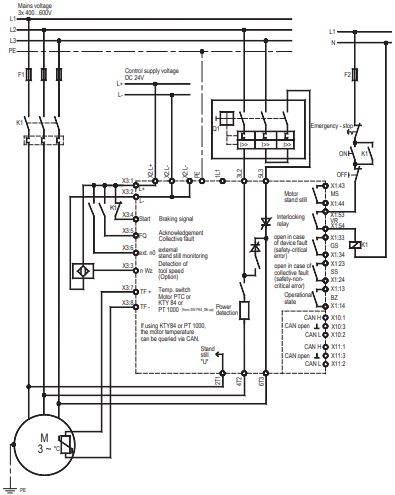

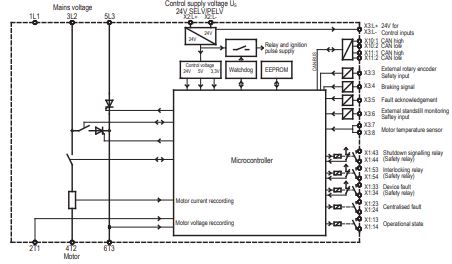

Connection Diagrams:
