Fuji Electric, Portable NDIR analyzer & sample conditioning system - ZSVS / ZSVF

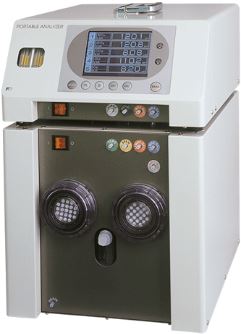

The compact type gas analyzer ZSVF is composed of an analyzing block (infrared sensor and oxygen sensor) and a sampling block (filters, sample pump, Peltier cooler, NOx converter, automatic calibration solenoid valves, condensate automatic discharge, flowmeters, etc.). Simultaneously measures up to 5 components among NOx, SO2, CO, CO2, CH4, and O2.
![FUJI ELECTRIC, PORTABLE NDIR ANALYZER & SAMPLE CONDITIONING SYSTEM - ZSVS / ZSVF FUJI ELECTRIC, PORTABLE NDIR ANALYZER & SAMPLE CONDITIONING SYSTEM - ZSVS / ZSVF](/upload/images/series/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20ZSVS,%20ZSVF/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20-%20ZSVS%20%20ZSVF%201.JPG)
Features.
- Compact sampling and sample conditioning system
- The large LCD screen with clear display assures simple operation
- Easy-to-use interface
- Single-beam infrared gas analyzer having excellent stability is adopted
- The separate structure allows the analyzer unit and the pretreatment unit to be placed separately.
- Continuous measurement for 5 days max
Applications.
Suited for monitoring of flue gas, combustion gas, biogas, garbage incinerators and heat treatment furnaces, for plant cultivation and research-purpose chemical analysis.
![Fuji Electric portable NDIR gas analyzer ZSVS. Fuji Electric portable NDIR gas analyzer ZSVS.](/upload/images/series/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20ZSVS,%20ZSVF/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20-%20ZSVS%20%20ZSVF%202.JPG)
Features.
- Compact type small and easy to use : built-in pump and membrane filter are easy to carry and install
- Integrated calcul fonction : Cp (Carbon Potential) calculation, O2 correction, moving average value, etc.
- Easy-to-see LCD : You can check the concentration changes of all components at a glance
- Single-beam infrared gas analyzer for excellent stability.
Applications.
- Tests for R&D such as combustion, biogas generation and plant photosynthesis tests
- Simple measurement for control of exhaust gas from businesses place
- Control and check of CA storage atmosphere
- Combustion exhaust gas measurement control
- Comparison with gas analyzers installed at site and backup

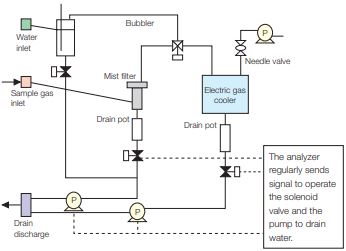

![Fuji Electric portable NDIR gas analyzer ZSVS Fuji Electric portable NDIR gas analyzer ZSVS](/upload/images/series/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20ZSVS,%20ZSVF/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20-%20ZSVS%20%20ZSVF%203.JPG)
- The large LCD screen with clear display assures simple operation.
- Single-beam infrared gas analyzer having excellent stability is adopted. The O2 sensor is available in 2 types: Paramagnetic type and Zirconia type.
- The separate structure allows the analyzer unit and the pretreatment unit to be placed separately.
- Measurement can be taken continuously for up to 5 days.
![Compact Fuji Electric NDIR gas analyzer system ZSV example configuration. Compact Fuji Electric NDIR gas analyzer system ZSV example configuration.](/upload/images/series/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20ZSVS,%20ZSVF/FUJI%20ELECTRIC,%20PORTABLE%20NDIR%20ANALYZER%20and%20SAMPLE%20CONDITIONING%20SYSTEM%20-%20ZSVS%20%20ZSVF%204.JPG)
Features.
- Compact sampling and sample conditioning system
- The large LCD screen with clear display assures simple operation
- Easy-to-use interface
- Single-beam infrared gas analyzer having excellent stability is adopted
- The separate structure allows the analyzer unit and the pretreatment unit to be placed separately.
- Continuous measurement for 5 days max
Applications.
Suited for monitoring of flue gas, combustion gas, biogas, garbage incinerators and heat treatment furnaces, for plant cultivation and research-purpose chemical analysis.
Fuji Electric portable NDIR gas analyzer ZSVS.
Simultaneously and continuously measures up to 4 components among CO, CO2, CH4, and O2. Suited for gas monitoring in heat treatment furnaces, plant cultivation, and research-purpose chemical analysis.Features.
- Compact type small and easy to use : built-in pump and membrane filter are easy to carry and install
- Integrated calcul fonction : Cp (Carbon Potential) calculation, O2 correction, moving average value, etc.
- Easy-to-see LCD : You can check the concentration changes of all components at a glance
- Single-beam infrared gas analyzer for excellent stability.
Applications.
- Tests for R&D such as combustion, biogas generation and plant photosynthesis tests
- Simple measurement for control of exhaust gas from businesses place
- Control and check of CA storage atmosphere
- Combustion exhaust gas measurement control
- Comparison with gas analyzers installed at site and backup

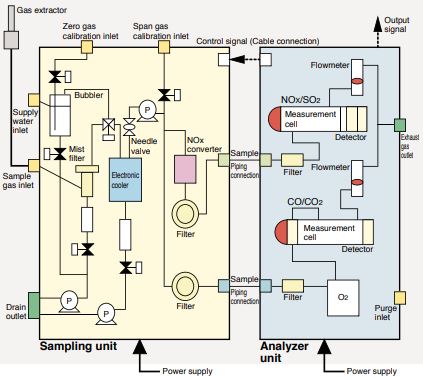

Compact Fuji Electric NDIR gas analyzer system ZSV example configuration.
- A maximum 5 components out of NOX, SO2, CO, CO2, CH4, and O2 can be measured simultaneously.- The large LCD screen with clear display assures simple operation.
- Single-beam infrared gas analyzer having excellent stability is adopted. The O2 sensor is available in 2 types: Paramagnetic type and Zirconia type.
- The separate structure allows the analyzer unit and the pretreatment unit to be placed separately.
- Measurement can be taken continuously for up to 5 days.
