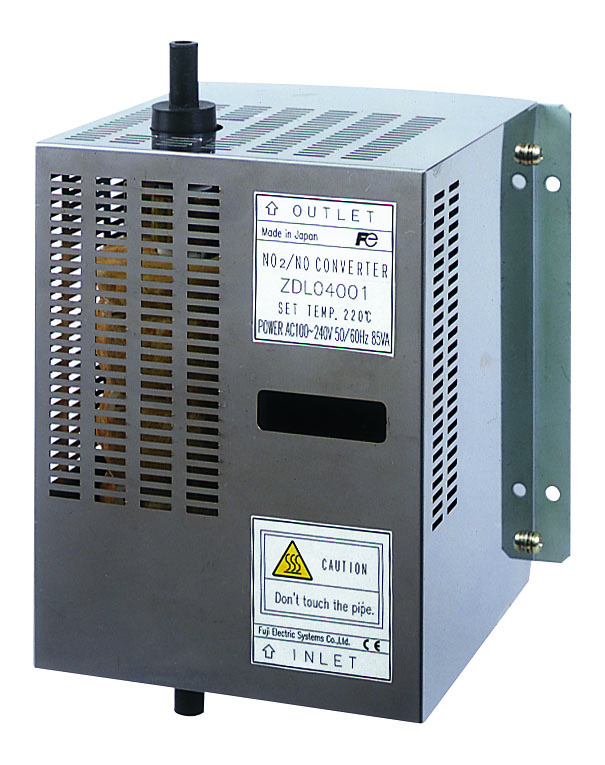

Fuji Electric, Exhaust gas monitoring NOx converter - ZDL

The NO2/NO converter is to be coupled with a NOx gas analyzer for flue exhaust. It is using a special catalyst which efficiently converts NO2 in the sample gas to NO.

Fuji Electric exhaust gas monitoring NOX converter - ZDL main specifications.

- Catalyst: Carbon, replacement required every 8 months (when NO2 concentration is 10ppm or lower)
- Gas flow rate: About 0.5L/min.
- Set temperature: 220±10°C
- Thermocouple: K
- Power supply: 100 to 240V AC, 50/60Hz
- Power consumption: About 85VA
- Gas inlet/outlet connection method: Insert Teflon tube ø6 mm/ø4 mm into Viton connection port of inner diameter ø5.5 mm. (Withstand pressure: 10 kPa)
Contact output: for temperature alarm SPST-NC contact, 220 V AC / 30 V DC, 1A (resistive load).

FUJI ELECTRIC, EXHAUST GAS MONITORING NOX CONVERTER - ZDL specifications.
